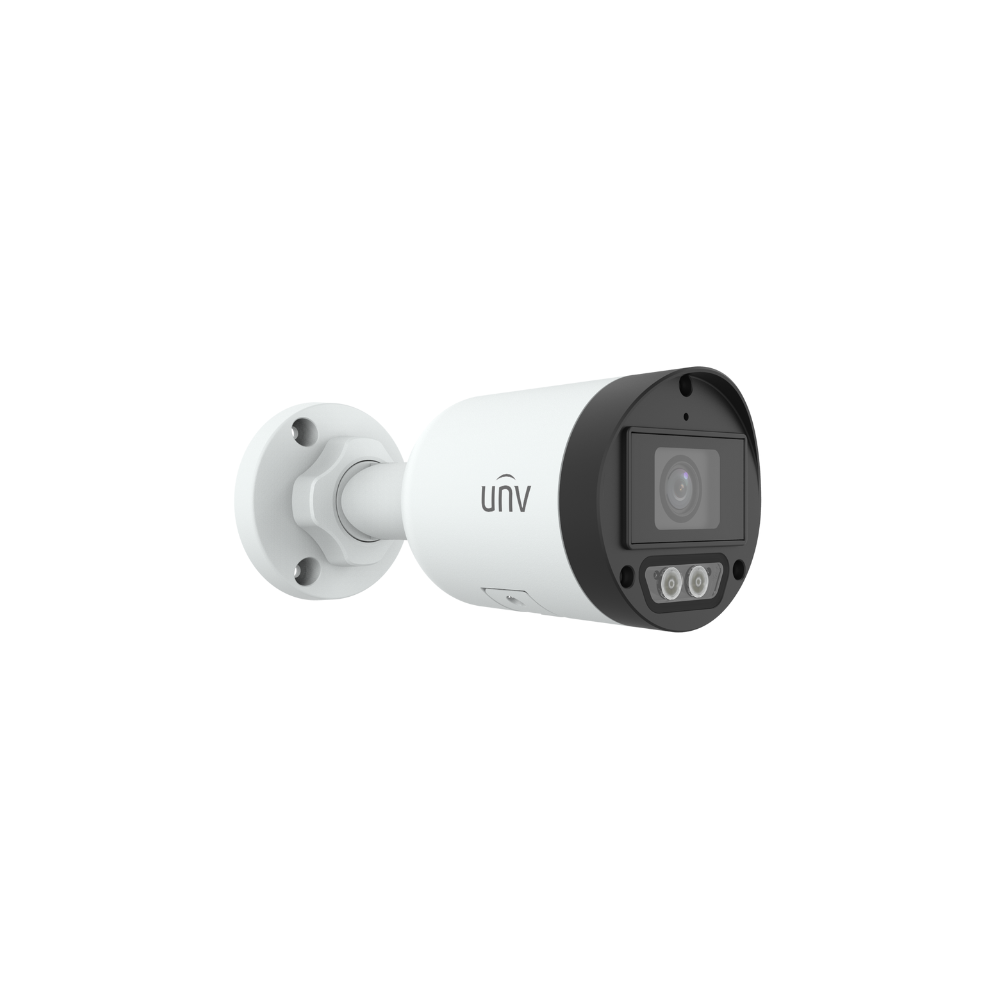

| IPC2122LB-AF28K-WL |
IPC2122LB-AF40K-WL |
| Camera
|
| Max Resolution |
2 MP |
| Sensor |
1/2.9" CMOS |
| Min. Illumination |
Colour: 0.005 lux ( F1.6, AGC ON) |
Colour: 0.005 lux ( F1.6, AGC ON） |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N |
>52 dB |
| WDR |
DWDR |
| Lens
|
| Focal Length |
2.8 mm |
4.0 mm |
| Iris Type |
Fixed |
| Iris |
F1.6 |
| Field of View (H) |
101.1° |
82.5° |
| Field of View (V) |
56.5° |
44.5° |
| Field of View (D) |
117° |
93° |
| DORI
|
| DORI Distance (Lens) |
2.8mm |
4.0mm |
| DORI Distance (Detect) |
45.0m(147.6ft) |
64.3m(210.9ft) |
| DORI Distance (Observe) |
18.0m(59.1ft) |
24.8m(81.4ft) |
| DORI Distance (Recognize) |
9.0m(29.5ft) |
12.4m(40.7ft) |
| DORI Distance (Identify) |
4.5m(14.8ft) |
6.2m(20.3ft) |
| Illuminator
|
| Illumination Distance (Warm Light) |
30 m (98.4 ft) |
| Supplemental Light |
Warm light |
| Light On/Off Control |
Auto/Manual |
| Video
|
| Video Compression |
Ultra 265, H.265, H.264 |
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video Bit Rate |
128 Kbps to 6144 Kbps |
| U-code |
Support (Main stream) |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Support |
| Video Stream |
Dual Streams |
| Image
|
| Smart Illumination |
Support |
| White Balance |
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Flip |
Normal, Flip Vertical, Flip Horizontal, 180° |
| Dewarping |
N/A |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Audio
|
| Audio Compression |
G.711U，G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
N/A |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Events
|
| Basic Detection |
Motion Detection, Audio Detection |
| General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
| Storage
|
| Edge Storage |
Micro SD, up to 512 GB |
| Network
|
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T),
API, SDK |
| User/Host |
Up to 32 users, 2 user levels: administrator and common user |
| Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF |
| Client |
UNV-Link, UNV-Link Pro, EZStation |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface
|
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Serial Port |
N/A |
| Built-in Mic |
Support |
| Built-in Speaker |
N/A |
| WIFI |
N/A |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output |
N/A |
| Certification
|
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B) |
| Safety |
CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection |
IP67 (IEC 60529) |
| General
|
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption |
Max 7.8W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H) |
| Weight |
0.24kg(0.53lb) |
| Material |
Metal + Plastic |
| Working Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection |
4 KV |
| Reset Button |
N/A |
| Web Client Language |
1 Language: English |
