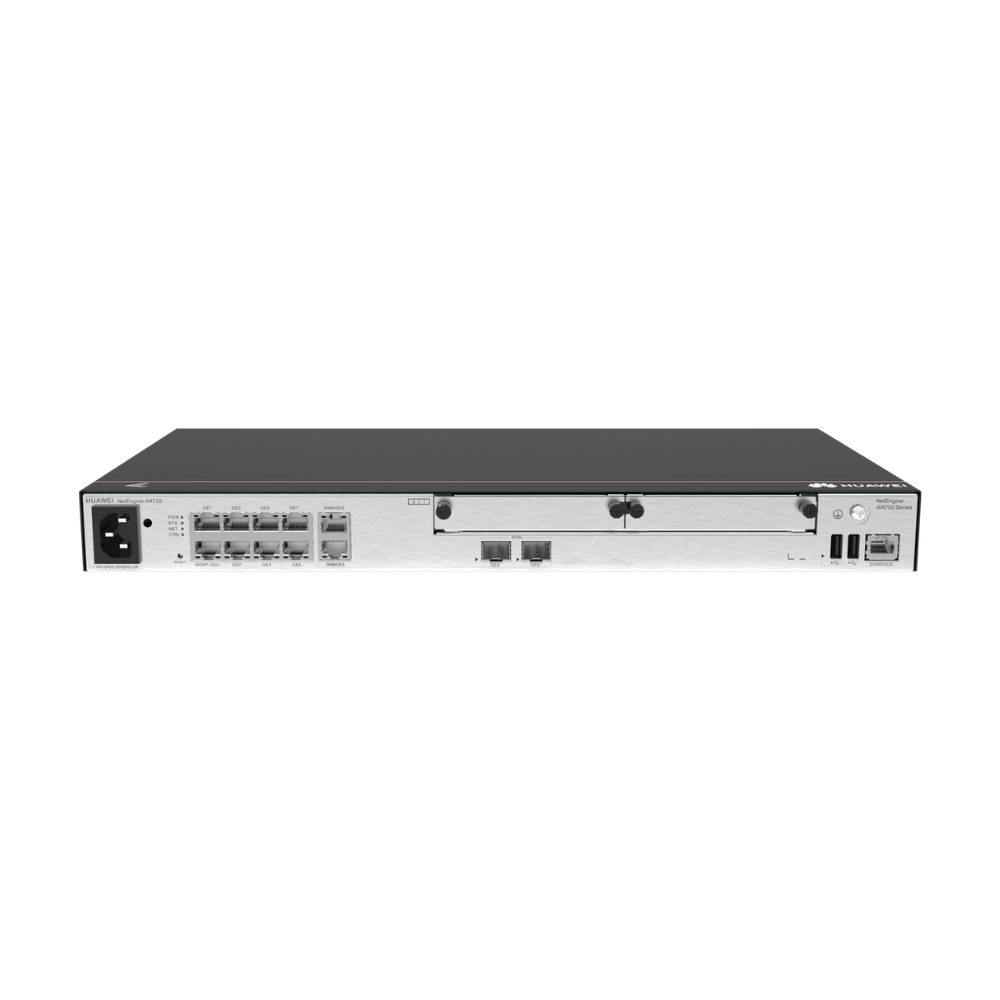

Huawei AR720, 700 Fixed WAN , 2 x GE combo ports,Fixed LAN ports 8 x GE , Router
Huawei AR720, 700 Fixed WAN , 2 x GE combo ports,Fixed LAN ports 8 x GE , Router
Huawei

Huawei AR720, 700 Fixed WAN , 2 x GE combo ports,Fixed LAN ports 8 x GE , Router

LE 37,375 EGP
This is Estimated Price, Discount Final Price After Confirmation Call

Estimate delivery times: 3-6 days

Return within 14 days of purchase. Duties & taxes are non-refundable.

  • Part Number: AR720
  • Available: instock
Huawei AR720, 700 Fixed WAN , 2 x GE combo ports,Fixed LAN ports 8 x GE , Router
Huawei
Huawei AR720, 700 Fixed WAN , 2 x GE combo ports,Fixed LAN ports 8 x GE , Router
LE 37,375 EGP

Technical Specifications

 Technical specifications of the AR720
Item Specification
Installation type
  • Rack
  • Work bench
  • Against the wall
Chassis height [U] 1 U
Dimensions without packaging (H x W x D) [mm(in.)]
  • Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.)
Weight with packaging [kg(lb)] 4.6 kg (10.12 lb)
Weight without packaging [kg(lb)] 3.2 kg (7.04 lb)
CPU 1.4 GHz, 4 Cores
Memory 4 GB
NAND Flash 1 GB
Console port RJ45
RTC Supported
LAN ports 8 x GE electrical interfaces
WAN ports 2 x GE combo
Number of service board slots 2
MIC slots (default/maximum) 0/0
SIC slots (default/maximum) 2/2
WSIC slots (default/maximum) 0/1
XSIC slots (default/maximum) 0/0
Redundant MPUs Not supported
RPS input Not supported
PoE Not supported
IP rating IP20
MTBF [years] 30.05 years
MTTR [hours] 2 hours
Availability 0.9999924012
Typical power consumption [W] 28 W
Maximum power consumption [W] 33 W
Power supply mode AC built-in
Number of power modules 1
Rated input voltage [V] 100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] 90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A] 2 A
Maximum output power [W] 70 W
Redundant power supply Not supported
Type of fans Built-in
Number of fan modules 1
Heat dissipation mode Air cooling
Airflow Left-to-right airflow
Noise at normal temperature (acoustic power) [dB(A)] 52.3 dB(A)
Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Overtemperature alarm Supported
