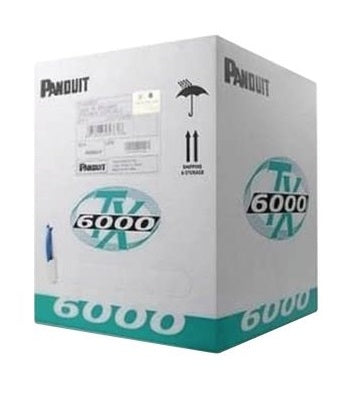

Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
Panduit
-7%

Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable

LE 12,500 EGP
LE 13,500 EGP
This is Estimated Price, Discount Final Price After Confirmation Call

Estimate delivery times: 3-6 days

Return within 14 days of purchase. Duties & taxes are non-refundable.

  • Part Number: PUL6004WH-FE
  • Available: instock
Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
Panduit
Panduit PUL6004WH-FE CAT6 Compliance, 23AWG White LSZH 305m Box Cable
LE 12,500 EGP
LE 13,500 EGP

Environment

Indoor

Performance Level

Category 6

Cable Construction

U/UTP

Flammability Rating

LSZH

EuroClass Rating

Dca-s2,d2,a1

Resistance Properties

Flame-Retardant

Jacket Material

LSZH Material

Region

APAC, EMEA, LATAM

Nominal Cable Outside Diameter (In.)

0.224

Nominal Cable Outside Diameter (mm)

5.7

Maximum Operating Temperature (°C)

60

Maximum Operating Temperature (°F)

140

Minimum Operating Temperature (°C)

-20

Minimum Operating Temperature (°F)

-4

Maximum Installation Temperature (°C)

50

Maximum Installation Temperature (°F)

122

Minimum Installation Temperature (°C)

0

Minimum Installation Temperature (°F)

32

Sub Brand

Pan-Net®

Maximum Installation Tension (N)

110

Maximum Installation Tension (lb)

25

Bend Radius (In.)

0.89

Bend Radius (mm)

22

Number of Pairs

4

Conductor Material

Copper

Conductor Type

Solid

Overall Length (ft.)

1000

Overall Length (m)

305

Conductor Gauge

23 AWG

Insulation Material

High-Density Polyethylene

Acidity Rating

a1

Insulation Diameter (In.)

0.039

Insulation Diameter (mm)

1

Maximum Voltage (V)

80

Standards Met

Exceeds ISO 11801 Class E and ANSI/TIA-568.2-D Category 6 with Channel Headroom Guarantee, IEC 61156-5, IEC 60332-1, IEC 60332-3-22, IEC 60754, IEC 61034, EN 50575: Euroclass Dca-s2-d2-a1, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, RoHS Compliant.

Color

White

Flaming Droplets Rating

d2

Packaging Type

Carton

Product Type

Bulk Copper Cable

Smoke Rating

s2

EuroClass Flame Rating

Dca
